Cordierite mullite kiln shelves are applied to the roller kiln for producing color glaze mosaic, glass mosaic, daily ceramics. Excellent thermal shock resistance of the products, it can be used as an optimum kiln furniture for the roller kiln fast firing.
Current specification:(Unit: mm)
435¡Á435 440¡Á440 450¡Á450 460¡Á460 470¡Á470 450¡Á500 450¡Á510 450¡Á520 460¡Á510 450¡Á560 510¡Á510 190¡Á200 295¡Á295 305¡Á305 320¡Á320 330¡Á330 340¡Á340 360¡Á360 400¡Á400 300¡Á700 340¡Á600 380¡Á500 380¡Á380 240¡Á410 240¡Á280 340¡Á440
(Special size can be made according to your design)
Main physical and chemical index:
Al2O3 MgO Fe2O3 Volume Density Safety Using Temperature
>36% >8% <0.8% >1.7g/cm3 <=1260¡æ
Room-temperature
Bending Strength 		High-temperature
Bending Strength 		Refractoriness Apparent Porosity Thermal Shock
Resistance
9Mpa 5Mpa 1480¡æ 30% Put into water at 1000 ¡æ for
10 times crack-free

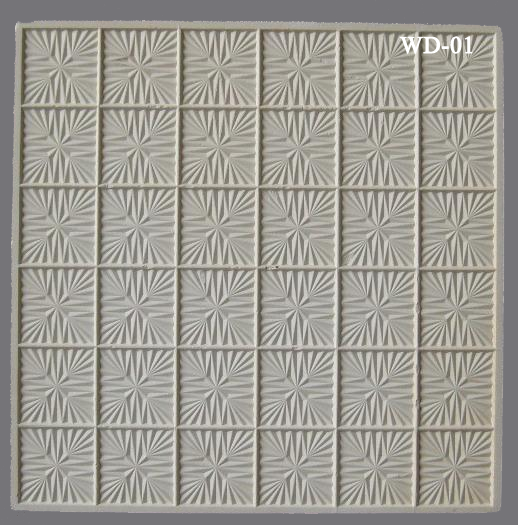

1. Snow Mosaic kiln shelf

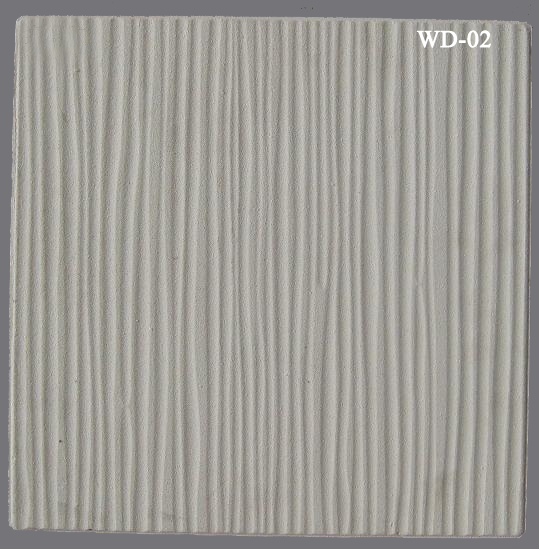

2. Line Mosaic Board

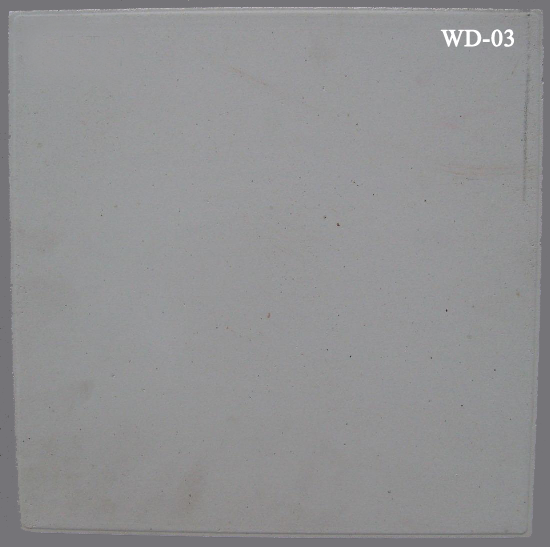

3. mosaic flat slab

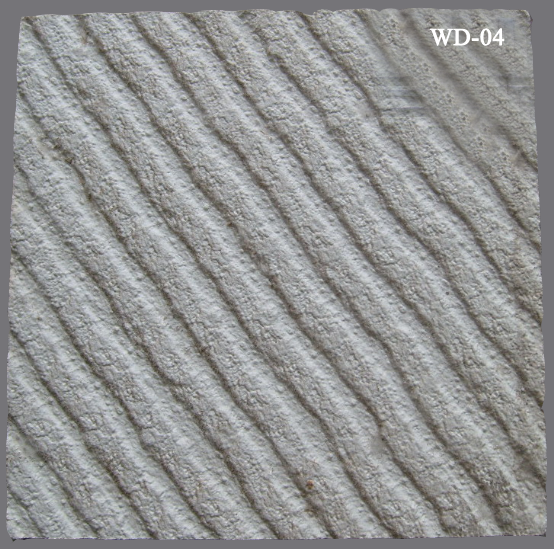

4. Wave mosaic slab

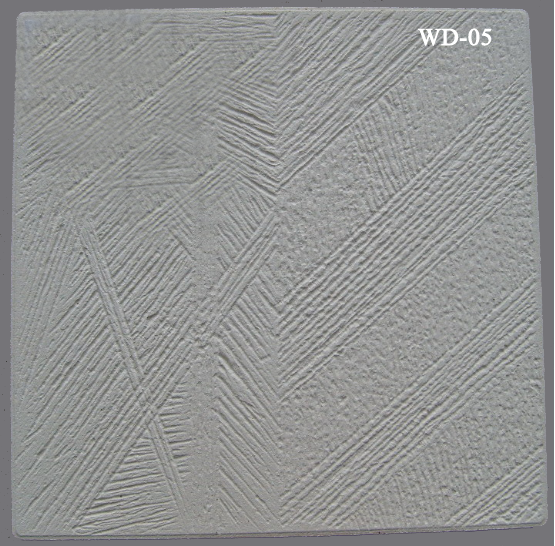

5. Mosaic slab
